# Tiling a Chamfered Rectangle with Two Pentaboloes

## Introduction

A *pentabolo* or *pentatan*
is a plane figure formed by joining five equal isosceles right triangles
at their legs or hypotenuses.

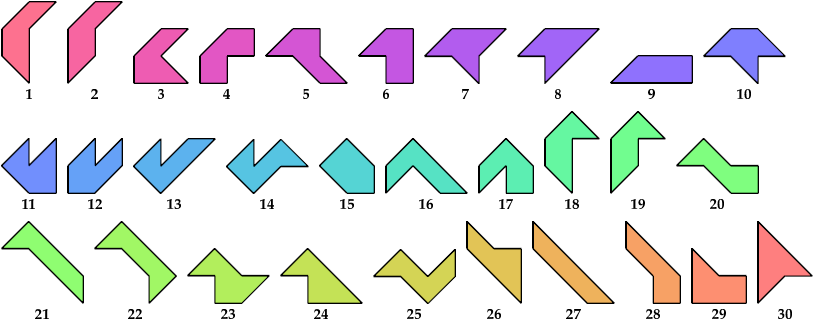

Here are the 30 pentaboloes:

A *chamfered rectangle* is a rectangular polyabolo
with its corner cells clipped diagonally.
To prevent cuts from meeting, I require the dimensions of the rectangle
to be 3 or greater.

Here I show the minimal known chamfered rectangle
that can be tiled by a pair of pentaboloes, using at least one copy
of each.

See also

## 4 Tiles

## 10 Tiles

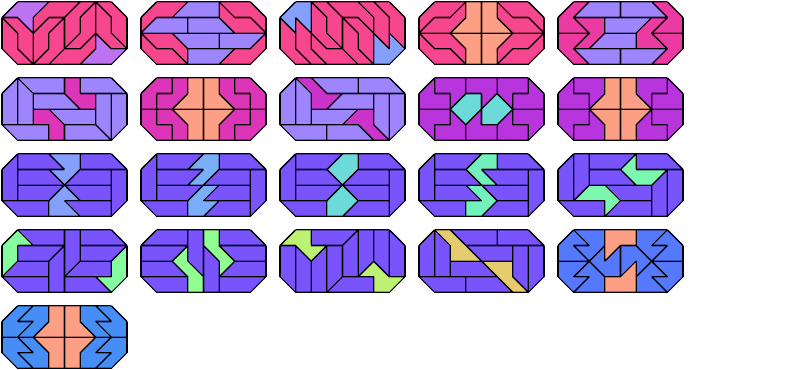

## 12 Tiles

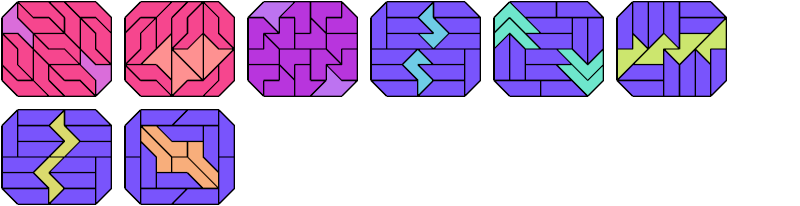

## 16 Tiles

## 20 Tiles

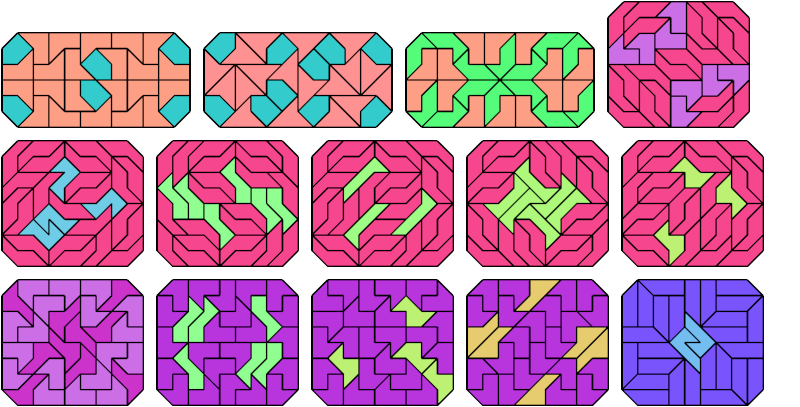

## 28 Tiles

## 30 Tiles

## 44 Tiles

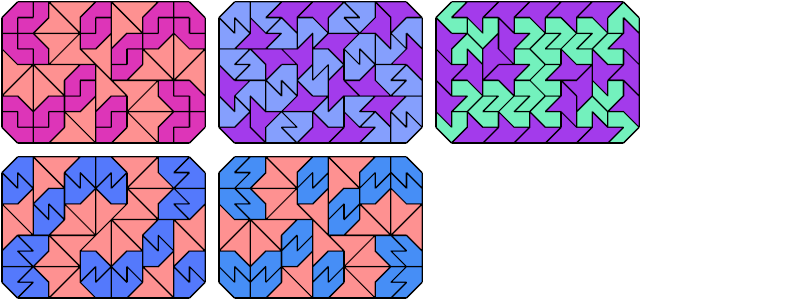

## 46 Tiles

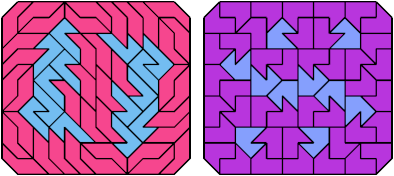

## 52 Tiles

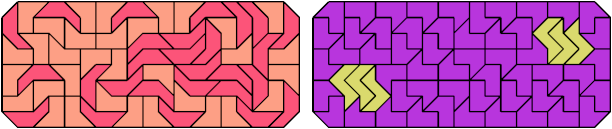

## 60 Tiles

## 72 Tiles

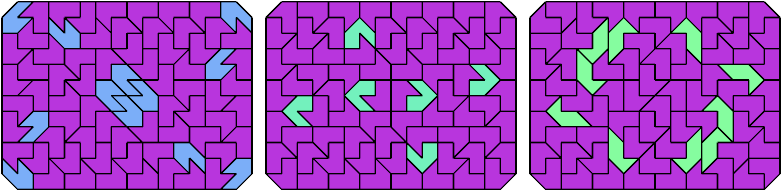

## 76 Tiles

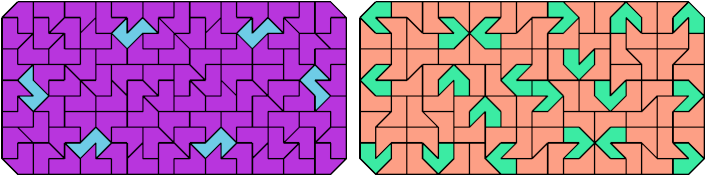

## 96 Tiles

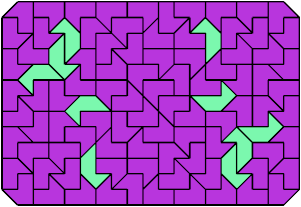

## 98 Tiles

## 108 Tiles

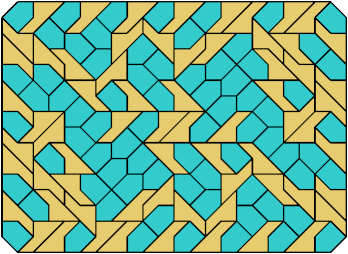

## 140 Tiles

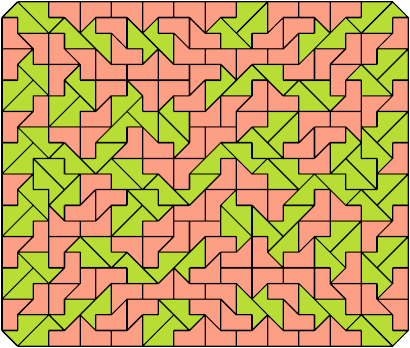

## 228 Tiles

Last revised 2024-04-10.
