Regular Hexagons Tiled with Three Didrafters

Introduction

A didrafter is a polyform made by joining two drafters, 30°-60°-90° right triangles, at their short legs, long legs, hypotenuses, or half hypotenuses. Polydrafters joined on the polyiamond (triangle) grid are called proper polydrafters. Polydrafters whose cells depart from the grid are called extended polydrafters. Here are the 13 didrafters, proper and extended:

Below I show how to make a minimal regular hexagon using copies of three didrafters, at least one of each. These solutions are not necessarily unique, nor are their tilings. If you find a solution with fewer tiles, or solve an unsolved case, please write.

See also Convex Figures with Didrafter Triplets and Rectangles Tiled with Three Didrafters.

1-2-318 1-4-10× 1-8-1024 2-4-772 2-7-12× 3-5-624 3-9-1018 4-7-918 5-6-1324 6-7-12× 7-10-11×
1-2-424 1-4-11× 1-8-11× 2-4-818 2-7-1372 3-5-754 3-9-11× 4-7-10× 5-7-8× 6-7-13150 7-10-12×
1-2-524 1-4-12× 1-8-12× 2-4-918 2-8-918 3-5-818 3-9-12288 4-7-11× 5-7-9× 6-8-954 7-10-13×
1-2-624 1-4-13× 1-8-13× 2-4-1024 2-8-1018 3-5-924 3-9-13288 4-7-12× 5-7-10× 6-8-1024 7-11-12×
1-2-724 1-5-624 1-9-1018 2-4-1172 2-8-1118 3-5-1024 3-10-11× 4-7-13× 5-7-11× 6-8-1154 7-11-13×
1-2-824 1-5-7× 1-9-11× 2-4-1254 2-8-1272 3-5-11× 3-10-12× 4-8-918 5-7-12× 6-8-12× 7-12-13×
1-2-918 1-5-872 1-9-12× 2-4-1372 2-8-1318 3-5-12294 3-10-13× 4-8-1024 5-7-1396 6-8-1318 8-9-1018
1-2-1018 1-5-954 1-9-13× 2-5-66 2-9-106 3-5-1324 3-11-12× 4-8-11× 5-8-918 6-9-1018 8-9-11×
1-2-1124 1-5-10× 1-10-11× 2-5-772 2-9-1118 3-6-724 3-11-13× 4-8-12× 5-8-106 6-9-1118 8-9-12×
1-2-12× 1-5-11× 1-10-12× 2-5-818 2-9-1218 3-6-824 3-12-13× 4-8-13× 5-8-11× 6-9-12× 8-9-13×
1-2-1372 1-5-12× 1-10-13× 2-5-918 2-9-1318 3-6-918 4-5-66 4-9-10× 5-8-1218 6-9-1354 8-10-1124
1-3-418 1-5-1324 1-11-12× 2-5-106 2-10-1118 3-6-1018 4-5-772 4-9-11× 5-8-1324 6-10-1124 8-10-1224
1-3-524 1-6-724 1-11-13× 2-5-1118 2-10-1224 3-6-1118 4-5-818 4-9-12× 5-9-10× 6-10-1224 8-10-1324
1-3-618 1-6-854 1-12-13× 2-5-1224 2-10-1324 3-6-1218 4-5-918 4-9-13× 5-9-11× 6-10-1324 8-11-12×
1-3-718 1-6-924 2-3-46 2-5-1318 2-11-12× 3-6-1372 4-5-1018 4-10-11× 5-9-1224 6-11-12× 8-11-13×
1-3-818 1-6-1024 2-3-56 2-6-772 2-11-1372 3-7-824 4-5-1118 4-10-12× 5-9-1318 6-11-13× 8-12-13×
1-3-9162 1-6-1124 2-3-66 2-6-818 2-12-13162 3-7-924 4-5-1224 4-10-13× 5-10-11× 6-12-13× 9-10-1124
1-3-106 1-6-1254 2-3-724 2-6-918 3-4-518 3-7-1024 4-5-1318 4-11-12× 5-10-12× 7-8-9× 9-10-12×
1-3-11× 1-6-1396 2-3-818 2-6-1024 3-4-66 3-7-11× 4-6-7× 4-11-13× 5-10-1324 7-8-1024 9-10-1318
1-3-12× 1-7-8× 2-3-96 2-6-1118 3-4-718 3-7-12× 4-6-824 4-12-13× 5-11-12× 7-8-11× 9-11-12×
1-3-13× 1-7-918 2-3-106 2-6-1254 3-4-818 3-7-13× 4-6-924 5-6-7× 5-11-13× 7-8-12× 9-11-13×
1-4-518 1-7-10× 2-3-1118 2-6-1354 3-4-918 3-8-954 4-6-1024 5-6-818 5-12-1396 7-8-13× 9-12-13×
1-4-624 1-7-11× 2-3-1224 2-7-872 3-4-106 3-8-1018 4-6-1154 5-6-918 6-7-8150 7-9-10× 10-11-12×
1-4-7× 1-7-12× 2-3-1318 2-7-918 3-4-1118 3-8-11× 4-6-1254 5-6-106 6-7-9× 7-9-11× 10-11-13×
1-4-8× 1-7-13× 2-4-56 2-7-1024 3-4-1224 3-8-1254 4-6-1354 5-6-1124 6-7-1024 7-9-12× 10-12-13×
1-4-9× 1-8-9× 2-4-624 2-7-1172 3-4-1318 3-8-1354 4-7-8× 5-6-1224 6-7-11× 7-9-13× 11-12-13×

6 Tiles

18 Tiles

24 Tiles

54 Tiles

72 Tiles

96 Tiles

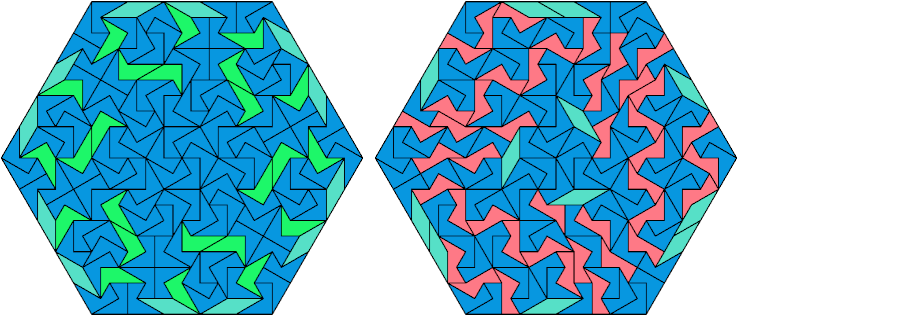

150 Tiles

162 Tiles

288 Tiles

294 Tiles
