Galvagni Figures & Reid Figures for Enneiamonds

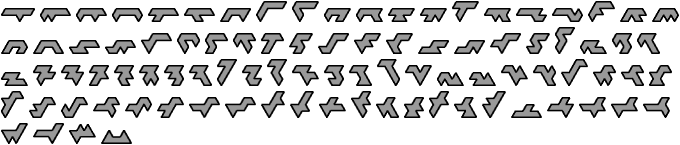

An enneiamond is a figure made of nine equilateral triangles joined edge to edge. A Galvagni figure is a figure that can be tiled by a polyform in more than one way—a kind of self-compatibility figure. A Reid figure is a Galvagni figure without holes.

Galvagni Figures

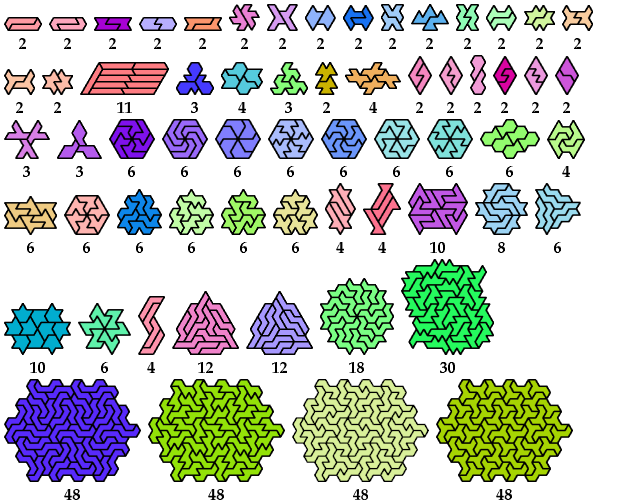

Here are the known minimal Galvagni figures for enneiamonds:

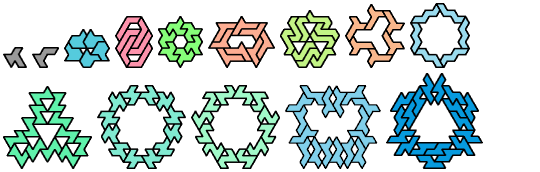

Hypersymmetric

Reid Figures

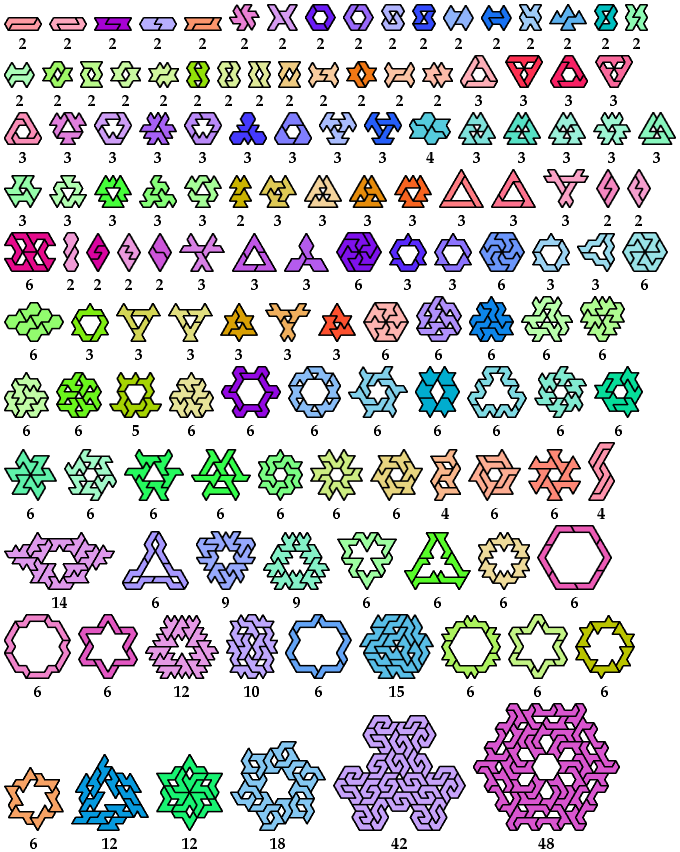

And here are the minimal known Reid figures:

Hypersymmetric

Last revised 2010-01-27.
