Galvagni Figures for Polyocts
A polyoct is a figure made of regular octagons joined
edge to edge.
A Galvagni figure is a figure that can be tiled by a polyform
in more than one way—a kind of self-compatibility figure.
Galvagni figures first appeared in Erich Friedman's
Math Magic
for November 2004.

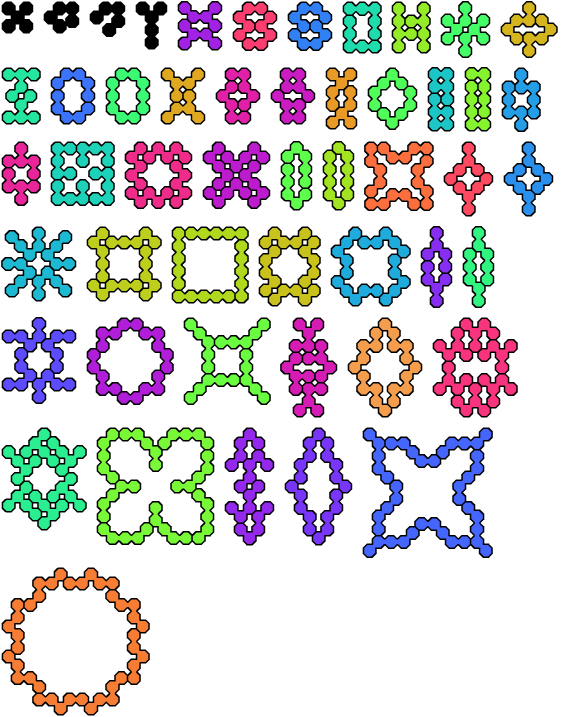

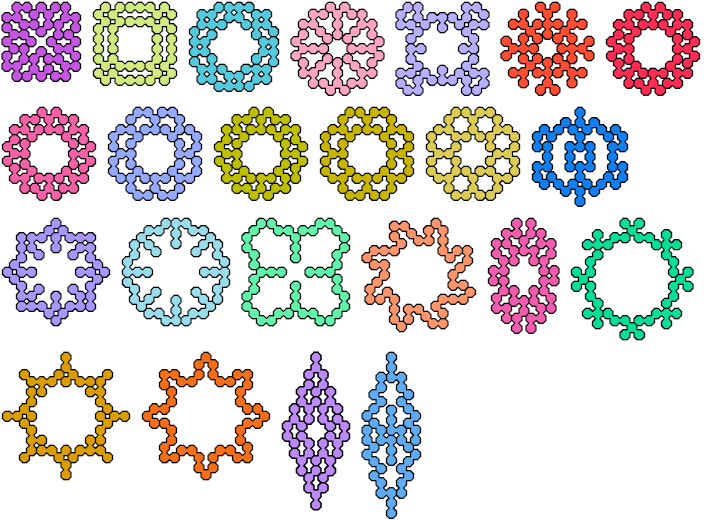

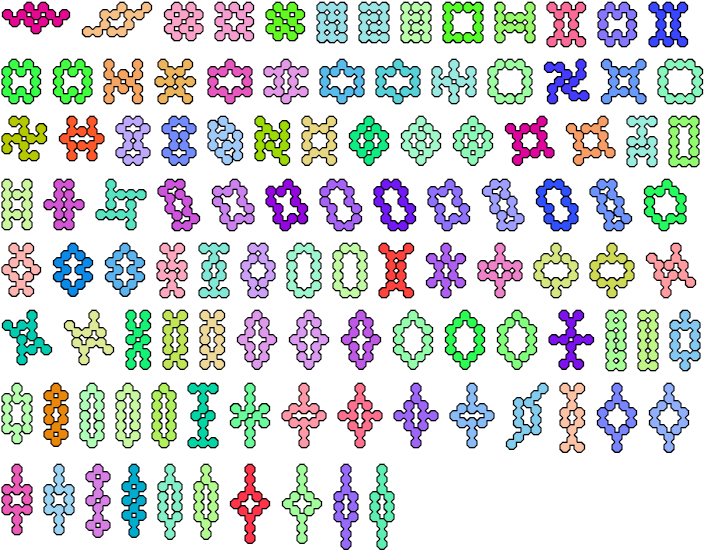

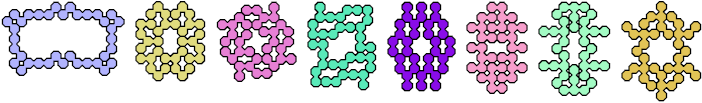

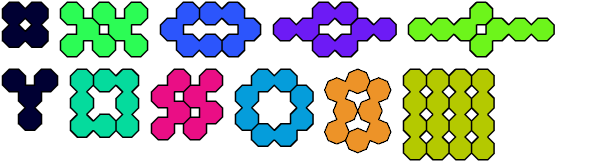

Here are minimal known Galvagni figures for polyocts.

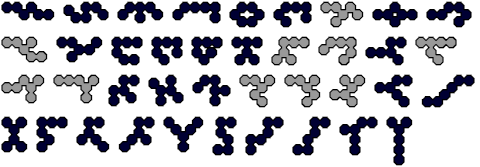

The black tiles have no Galvagni figures.
Unknown
2 Tiles
3 Tiles
4 Tiles
6 Tiles
8 Tiles
12 Tiles
26 Tiles
44 Tiles

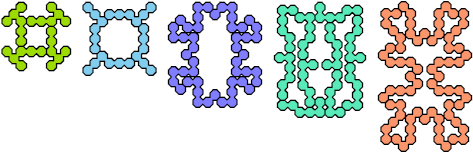

Hypersymmetric Variants
Last revised 2011-03-13.
