Polyabolo Magic Squares

Introduction

Erich Friedman's Math Magic for May 2007 introduced polyomino magic squares. A polyomino magic square is a square grid in which copies of a given polyomino are placed so that the numbers of occupied cells in each row and column are the same. This is not possible for some polyominoes, and may be hard to accomplish for others.

Here I show polyabolo magic squares. Every row and column must contain the same number of polyabolo cells. Their orientations within the grid cells are ignored.

Monabolo

Diaboloes

Triaboloes

Connected Variant

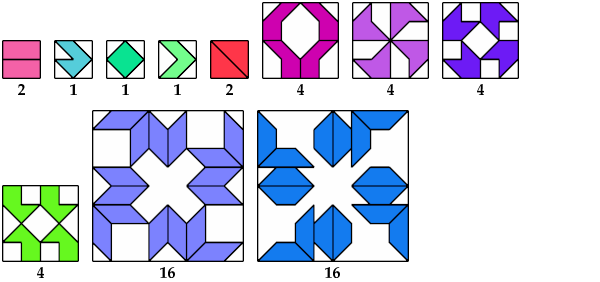

Tetraboloes

Impossible

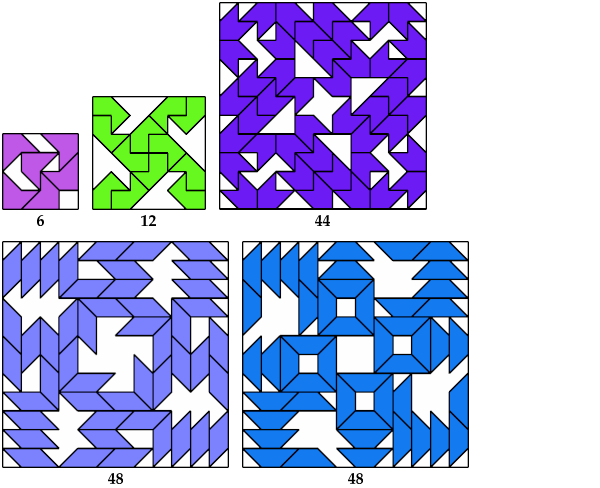

Connected Variants

Pentaboloes

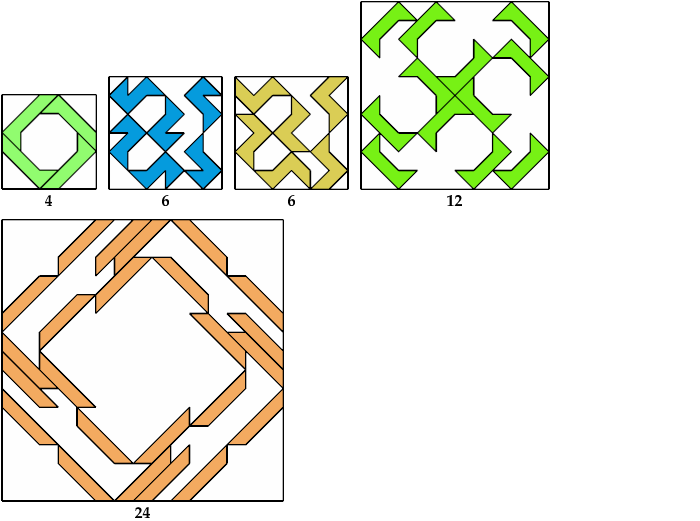

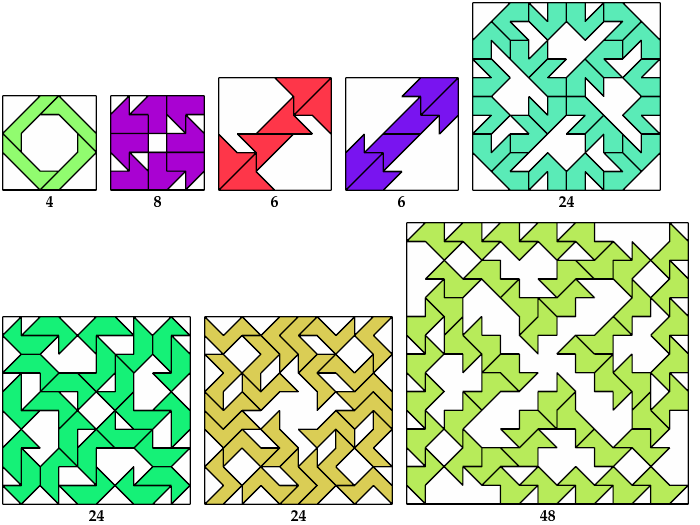

Connected Variants

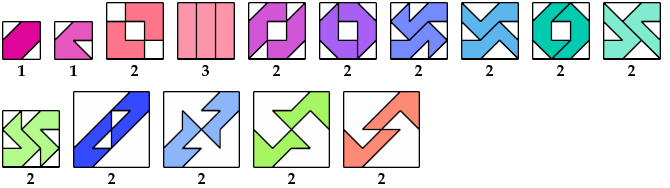

Hexaboloes

1–3 Tiles

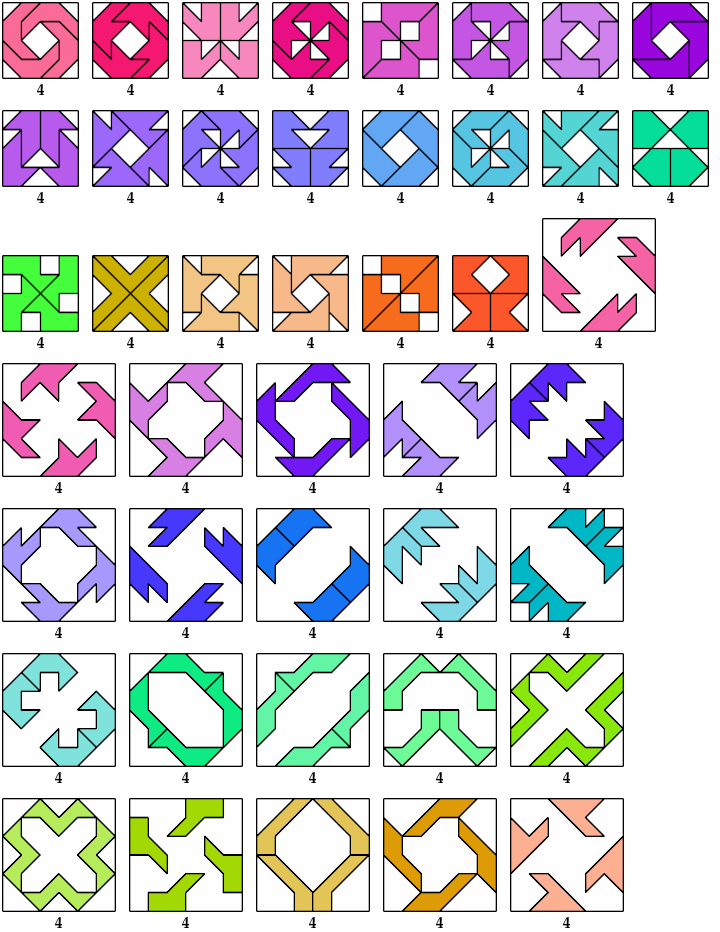

4 Tiles

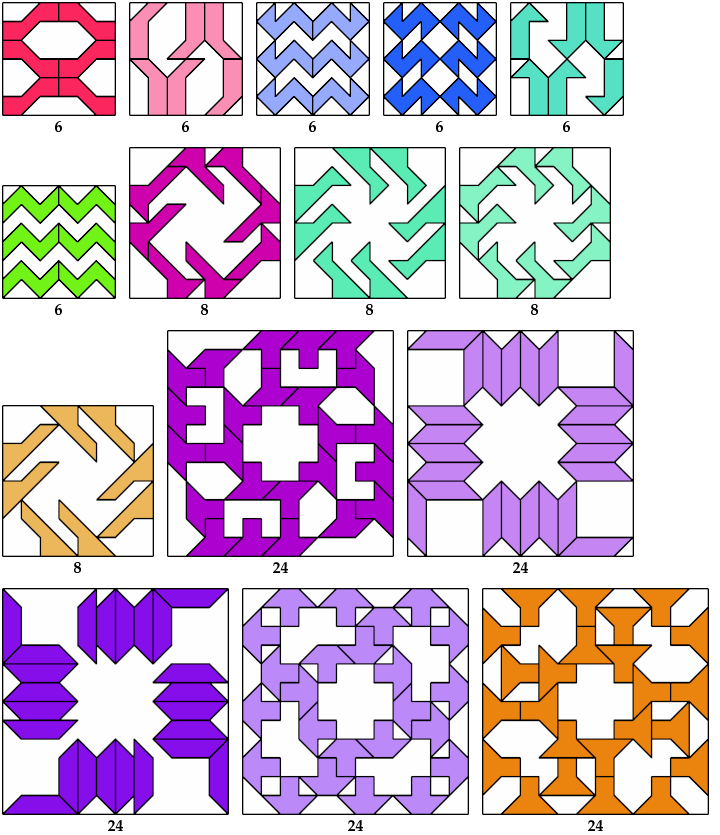

6 or More Tiles

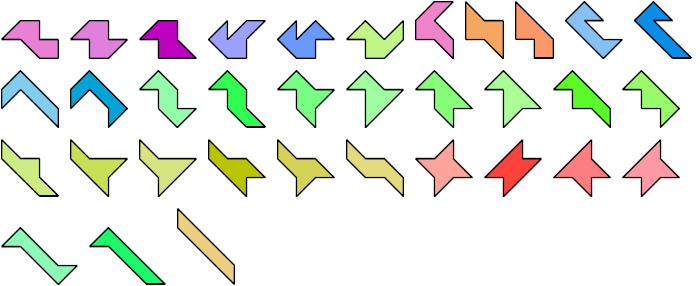

Impossible

Last revised 2018-08-21.
