    • Introduction

    A tetracairo is a polycairo with four cells. Two polyforms are compatible if there is a polyform that both of them can tile.

    Here I show minimal known compatibilities for pairs of tetracairos.

    Enumeration

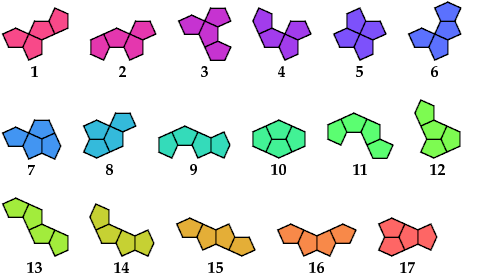

    There are 17 tetracairos. They are shown below.

    Table

    This table shows the fewest tiles known to be needed for compatibility of two tetracairos.

    1234567891011121314151617
    1 * 4 4 2 2 4 2 4 × × 4 4 2 4 × 2 ×
    2 4 * 4 2 × 4 × 4 4 × 4 4 4 × × 4 ×
    3 4 4 * 4 4 4 4 2 2 × 4 4 4 × × × ×
    4 2 2 4 * 2 4 4 4 × × 4 4 2 4 × × ×
    5 2 × 4 2 * 4 × 4 × × 4 4 2 × × × ×
    6 4 4 4 4 4 * 4 4 4 × 4 4 4 2 × 4 4
    7 2 × 4 4 × 4 * 4 12 × 4 4 2 4 × 2 ×
    8 4 4 2 4 4 4 4 * 2 × 4 4 4 4 × × 4
    9 × 4 2 × × 4 12 2 * × 4 16 16 2 12 12 4
    10 × × × × × × × × × * 2 2 2 × × × ×
    11 4 4 4 4 4 4 4 4 4 2 * 2 2 4 4 4 ×
    12 4 4 4 4 4 4 4 4 16 2 2 * 2 4 2 4 2
    13 2 4 4 2 2 4 2 4 16 2 2 2 * 4 2 4 ×
    14 4 × × 4 × 2 4 4 2 × 4 4 4 * 4 × ×
    15 × × × × × × × × 12 × 4 2 2 4 * 2 ×
    16 2 4 × × × 4 2 × 12 × 4 4 4 × 2 * ×
    17 × × × × × 4 × 4 4 × × 2 × × × × *

    Solutions

  • 2 Tiles
  • 4 Tiles
  • 12 Tiles
  • 16 Tiles

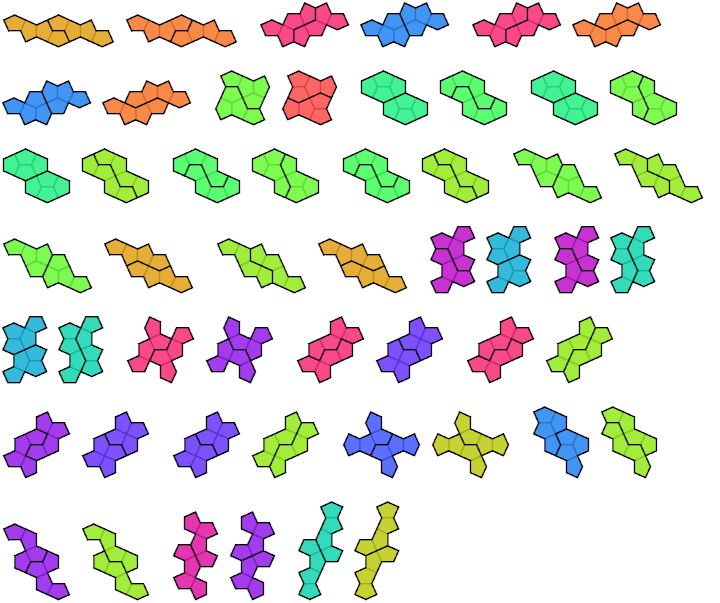

    • 2 Tiles

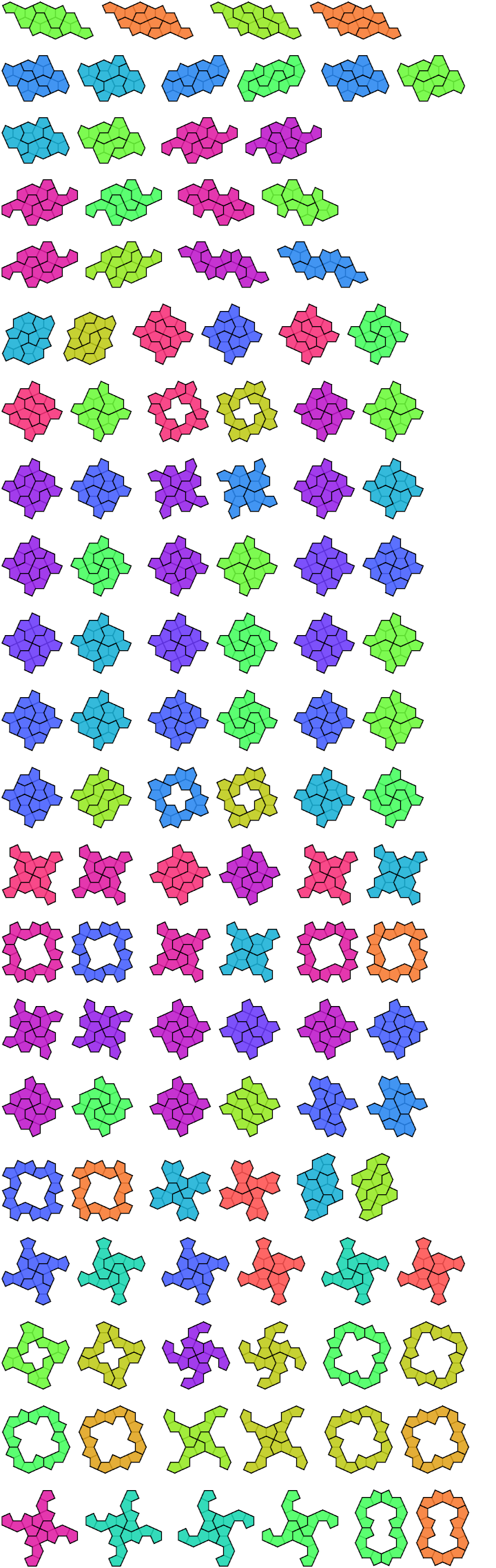

    4 Tiles

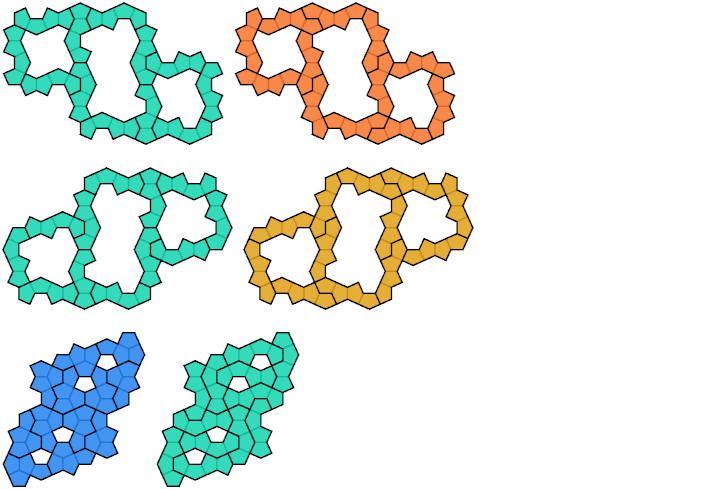

    12 Tiles

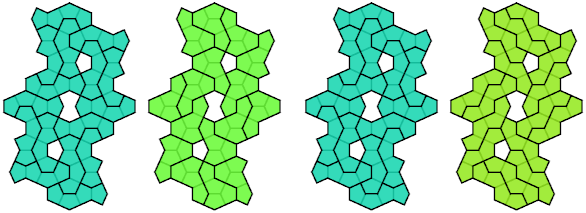

    16 Tiles

    Last revised 2023-08-09.
