Heptiamond Pair Pentagons

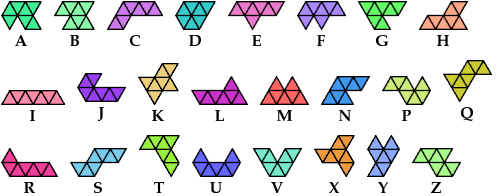

A heptiamond is a plane figure formed by joining 7 equal equilateral triangles edge to edge. There are 24 heptiamonds:

Here I show the smallest known pentagonal (five-sided) polyiamonds that can be formed by copies of two heptiamonds, using at least one of each. If you find a smaller solution, please write.

See also Hexiamond Pair Pentagons.

2 Tiles

3 Tiles

4 Tiles

5 Tiles

6 Tiles

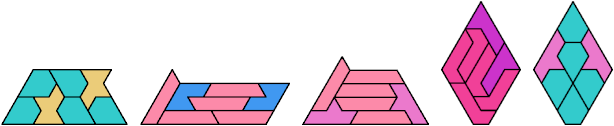

7 Tiles

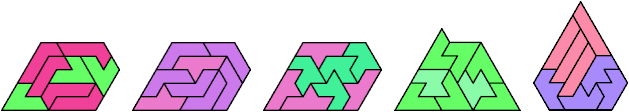

8 Tiles

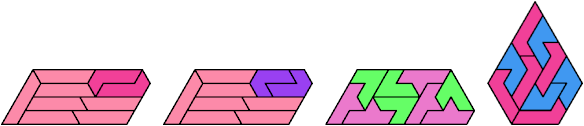

9 Tiles

12 Tiles

13 Tiles

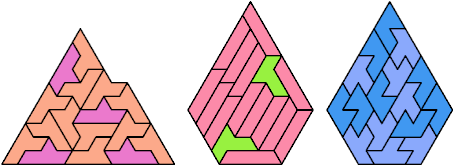

16 Tiles

18 Tiles

20 Tiles

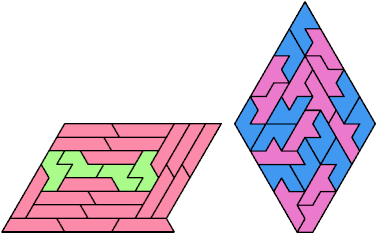

23 Tiles

25 Tiles

26 Tiles

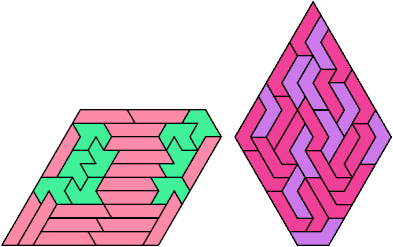

28 Tiles

32 Tiles

33 Tiles

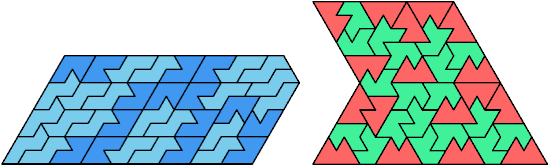

36 Tiles

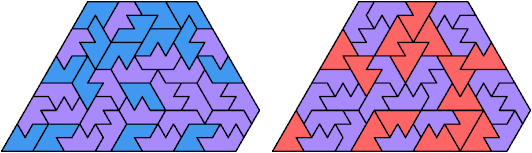

38 Tiles

39 Tiles

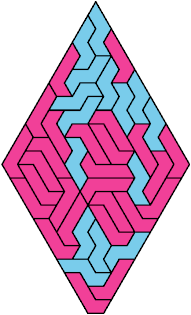

41 Tiles

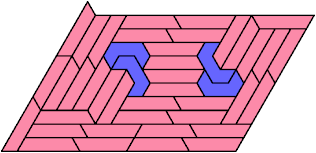

43 Tiles

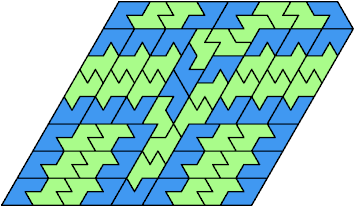

68 Tiles

Last revised 2024-07-30.
